If you wish to view previous work then links to updates are above. Work before this date was organised in sections (chassis, engine, bodywork etc) you can see this work by going to "New Project Title Page" above.

A comment I often get when people view my car is "You must have lots of money, especially as you only work two days a week". My answer is usually along the following lines. I have enough money to build my car because I have focused my life to enable me to build it and spend money by making sacrifices. I have not been on holiday for years, I do not go out drinking many nights a week (in fact I have now quit drinking, so I always have a clear head), I do not have a mobile phone or satellite TV, I wear my clothes and shoes until they wear out, I do not buy unnecessarily items that I have no real requirement for, my money is invested wisely, I drive a 20 year old car that cost me £200 3 years ago (best value for money I have ever spent!) etc etc. I also say that the car has cost me less per week than most people will spend on going out and I will have something to show for it.

A lot of people also express a desire to build their own car. I point out that to do something to the level of my car it is a way of life. I dedicate nearly all my waking hours to completing the car. I am thinking about it most of the time. A normal day is up at 6.30am and in the garage before 8am and work until 8pm with an hour off for lunch. Its the only way to get it done. Recently I have also started getting very agitated if I can not work on the car when I want to. I think this is known as an obsession!

Work has progressed well on the car. The engine is in and plumbed. The front scuttle and panel work (inner wings, A panels, ducting) is fitted. The suspension is on and aligned. Robin is working well on the rear bodywork. All the oil pipes are on for the engine and the water pipes will be fitted very shortly. If I fit the exhaust in theory I could start the engine! If I fit a diff and drive shafts and bleed the clutch in theory I could drive it !!!!!!!!!

There are 21 pictures on this page, posted 24th September 2003

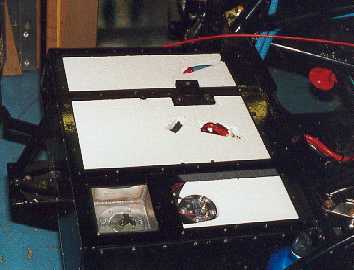

Insulation on top of the fuel tank.

The fuel tank is insulated around the sides and on top. The idea
is to try and keep the fuel cool.

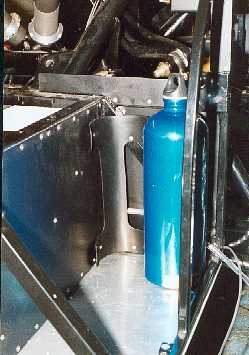

The washer bottle and mount.

The washer bottle is made from an alloy drink bottle bought
cheap from an outdoor shop. It is mounted to the chassis on an
alloy bracket with cable ties. Here the bottle is stood by the mount.



Fuel filter.

The fuel pipes are insulated and the fuel filter is mounted low on a curved bracket
held on with worm drive hose clips. I did not use cable ties as I was worried they may
be effected by heat. The fuel filter will also be insulated.

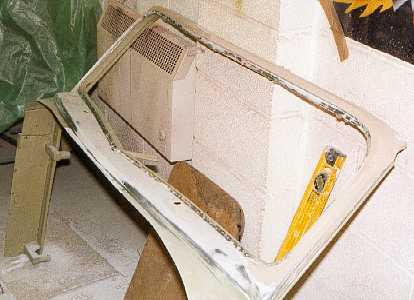

The front end being filled.

Robin added a bit of filler to the front scuttle to get it super smooth.

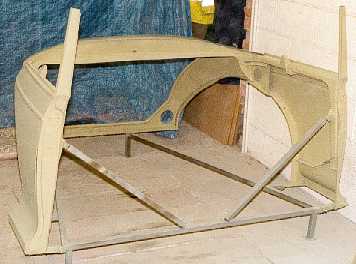

The rear in etch primer.

The rear in etch primer at Robin`s. The box section stand helps support
the bodywork.

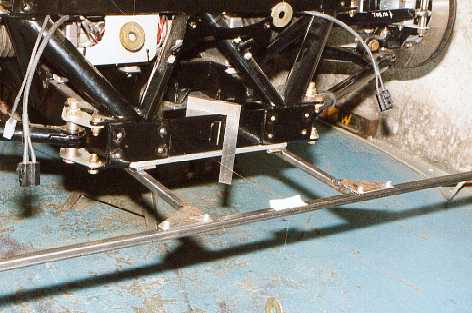

Finding the centre of the car.

To align the suspension I made bolt on frames (one at the front and one at the rear) so
I could construct a string rectangle around the car. A string is also run down the
centre of the car as this is the reference. I have centre marks on the chassis (the
white mark by the square).

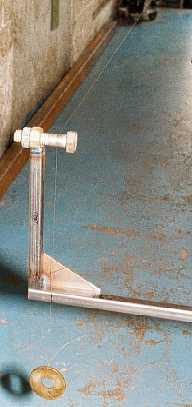

String down the edge of the car.

Down each edge of the car I put string (actually fishing line and a washer on each end keeps it tight).
The bolt has a groove in which the string sits. By winding the bolt in and out I can get the string exactly
the same distance from the centre line on each corner, so constructing an accurate
parallelogram around the car. The car has been leveled before this takes place.
To check the toe settings it is a simple task to measure from the rim of the wheel
to the fishing line. Doing it this way means the rear wheels are correctly aligned
to the fronts and the car will not crab.

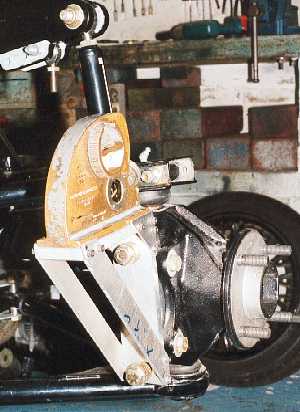

Checking the caster.

Once the front wheels are set straight I can check and adjust the caster.
I made a fixture so I could measure it straight off the upright with my level.
I am not too concerned with the exact value of the caster to 0.5 degree
as long as both sides are the same.

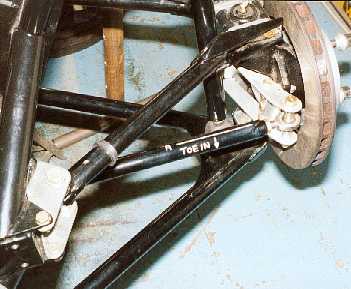

Markings for toe adjustment.

I set the wheels straight ahead, but I know how much I have to turn the
steering arm to give me a certain amount either toe in or toe out.
I also marked the direction to turn the steering arm to keep it simple!

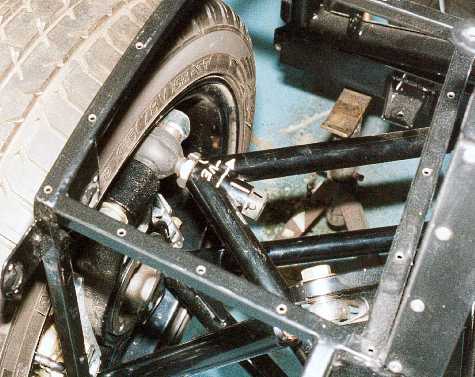

Rear camber adjustment.

The same principle is applied to the rear camber. I have set the wheels 0.5 degree
negative, but I know exactly how much to turn my adjuster to give me
for example 1 degree negative. Again the direction is marked.
This all means that I can adjust the suspension by turns at an event or during
testing without having to level the car, set up my strings etc.

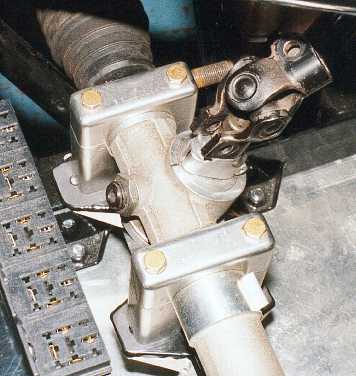

Steering Rack Centre.

I know I have shown this before but I am proud of this trick.
The alloy piece below the uj is a bolt on item which is marked and
allows me to centre the steering rack very quickly and easily.
This is important for suspension alignment. The alloy piece
also allows the UJ to slide onto the splines to the exact position
so the bolt will slide straight through.

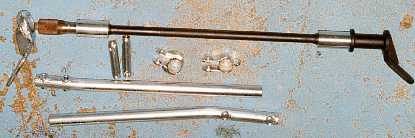

The rear anti roll bar

This is the rear anti roll bar. It is made from a Minor torsion bar
(turned down to make it softer). The right hand short arm is held
in place with a chemical bearing retainer, the left end is the
original Minor splines. Other items are drop links, clamps and
arms.

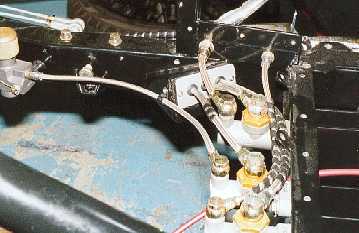

Master Cylinder Plumbing

These are the master cylinders. The reservoirs are at the rear of
the car and the feed lines go down the chassis rail through the alloy
plate with grommets.

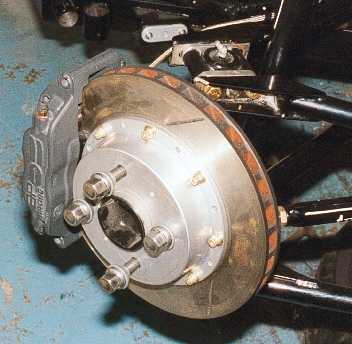

Front Brakes

This is the front brake. 280mm dia. x 25mm wide disc on an alloy
mounting bell (I made)> they are bolted together with very high strength
NAS series bolts. The extra set of holes in the mounting bell is so
if the original holes elongate or crack I can use the second set.
The caliper is a 4 pot with 4 x 1.25" pistons.

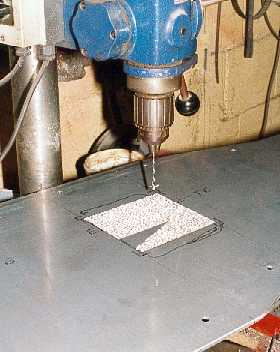

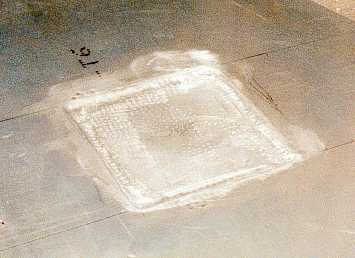

Cutting a recess in the floor.

I wanted to mount the engine and gearbox as low as possible. The lowest point
is actually part of the gearbox and this sticks down below the chassis rails
so I have to recess the floor. To do this I set the height stop on the drill and
drilled hundreds of holes. The triangular area is where I could not reach with the
pillar drill!



The recessed floor.

Once all the holes were drilled I removed the rest of the alloy with an
angle grinder and die grinder.

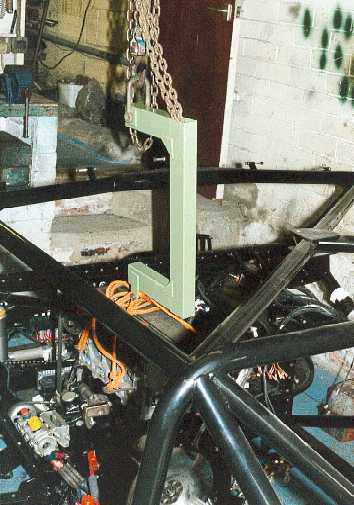

The engine hoist.

To get the engine in I had to make a special hoist to clear the windscreen frame.
This is because the engine sits under the windscreen. The engine goes in through
the roof. Nothing is simple with this car!



Clutch.

The clutch is actually a Ford item. The splines on the Fiat and Ford
are the same. The paddle may be a bit on / off but I should be able
to cope. I use part of an old Fiat gearbox to align the clutch.

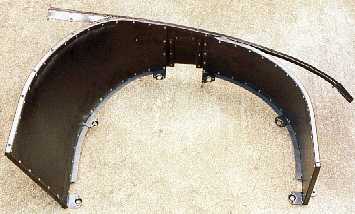

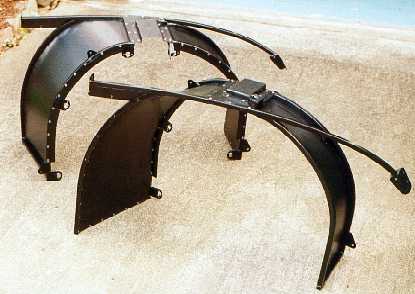

The inner wings.

These are the inner wings made from 0.5" box section and alloy sheet.
They bolt in.



Inner Wing.

The inner wings are not a simple shape. They are made to clear the tyre
on full lock and bump. They have a lip on the rear edge onto which
an inner panel will be attached with quarter turn fasteners.

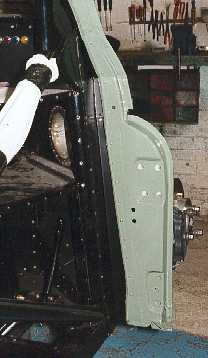

The A panel.

The front bodywork is sprayed and fitted. The A panels are siliconed and rivetted in place.
It looks very neat and is totally sealed. I can also still get draught excluder on the door pillar.
