This uprights were blasted
then painted. I had to hard mask them to stop damage to critical areas and
paint from going onto mating surfaces. I made aluminium blanking plates and
stuck old inner tube to some of them to provide a good seal.
-----------------------------------------------------------

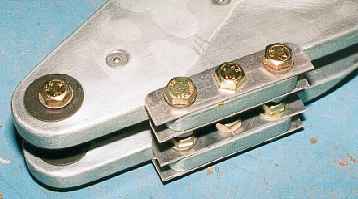

The rockers were also
hard masked to prevent damage from blasting and paint going on mating surfaces.
If you have paint between two surfaces bolted together the paint will eventually
compress and then wear away and cause a loose joint.
---------------------------------------------------------
The rockers after painting
with all the bearing parts. The bearings will be located only with 638 Loctite.
-----------------------------------------------------------
The bearing assembly
before inserting into the rocker. All the spacers are stainless.
------------------------------------------------------------
