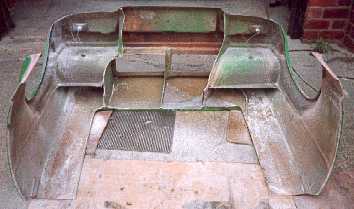

Once the front has been
cut off all the double skinning was removed using an angle grinder to cut
and grind. This was an awful job.
--------------------------------------------------------------

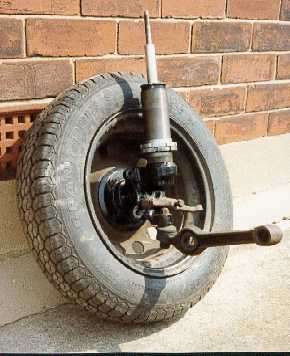

The front suspension
is based on a shortened Ford ( Escort or Capri ) strut.
-------------------------------------------------------------

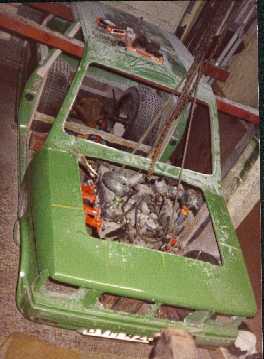

The car mocked up. The
wheels and tyres sit central an the arches, this dictates the suspension position
and the engine sits in the space left.
-------------------------------------------------------------

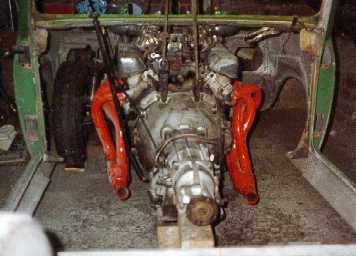

The exhaust manifolds
were purchased so the chassis could be built around them. They are after market
Rover SD1 items.
-------------------------------------------------------------

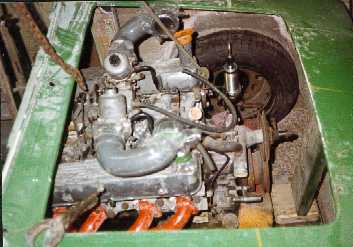

A close up of the engine
bay. The engine will be set a long way back.
-------------------------------------------------------------

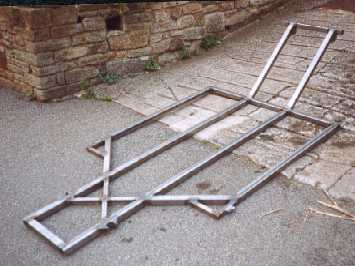

The flat base of the
chassis. An upper structure is required to give strength.
-------------------------------------------------------------

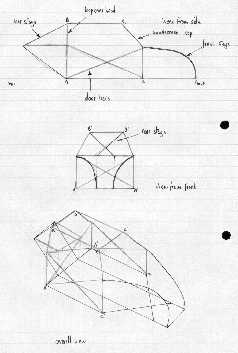

I sketched out the design
of the roll cage. I tried to triangulate and support suspension pick up points
as much as possible.
------------------------------------------------------------

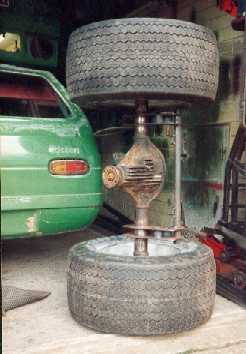

The rear axle, wheels
and tyres stood up behind the car. This shows how big the rear end is.
------------------------------------------------------------

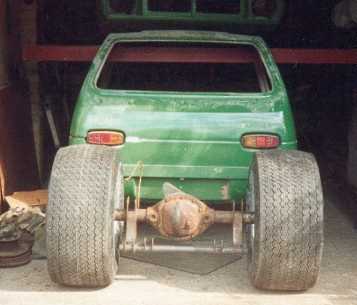

The rear end assembled.
It does fit under the body work.
-------------------------------------------------------------

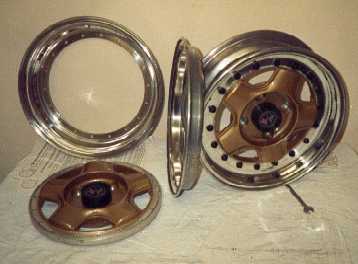

To get the front wheels
as narrow as I required they had to be split rims. They cost as much as the
rear wheels.
------------------------------------------------------------
