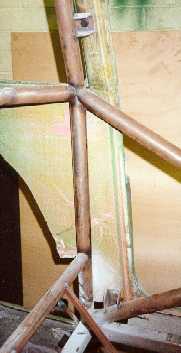

The middle body mounts
pick up on a steel loop bonded into the Reliant body.
-------------------------------------------------------------
So I could remove the
rear wheels I had to make the lower part of the body removable. It will be
held on with Dzus fasteners.
-------------------------------------------------------------

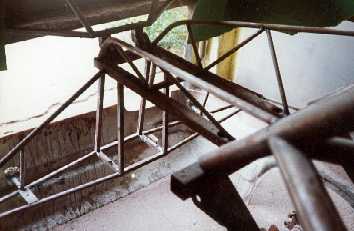

The rear chassis structure
to hold the petrol tank, batteries, fuel pumps and body.
-------------------------------------------------------------

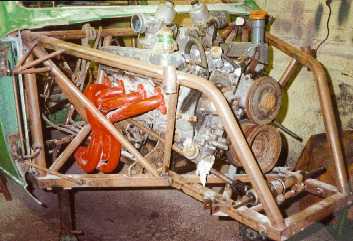

The front with engine
mounted.
-------------------------------------------------------------

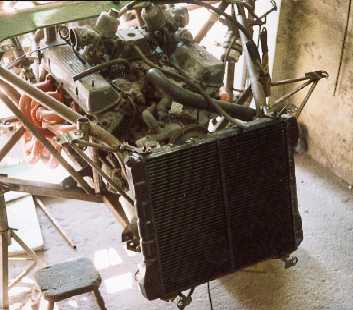

I went to a local radiator
specialist and told them the engine and the space I had. They built a radiator
around a Vauxhall Senator core with Rover SD1 end tanks and Morris Marina
mounting plates.
-------------------------------------------------------------

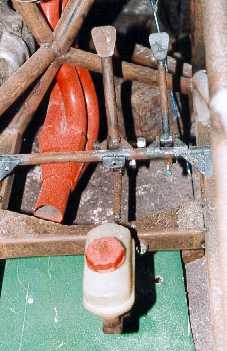

The pedal box with home
made mounts and pedals. The master cylinder is from a Ford Escort. The structure
will be strengthened with a bolt on top foot plate and a panel welded in underneath.
-------------------------------------------------------------

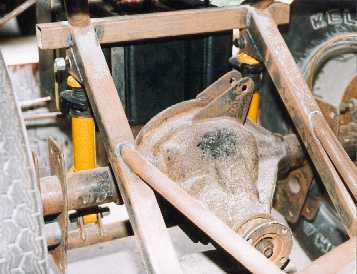

The axle in position
with the Spax coil overs from a Reliant Scimitar.
-------------------------------------------------------------

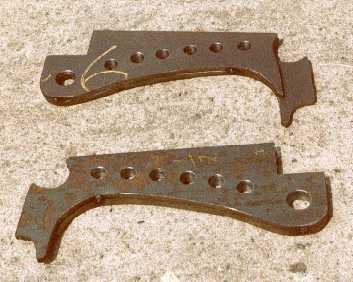

The radius arm mounts
for the chassis. They are tack welded together before drilling and shaping
so both will be identical.
--------------------------------------------------------------

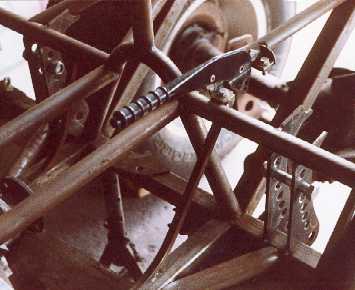

The radius arm mounts
in position with the Reliant Kitten hand brake lever.
-------------------------------------------------------------

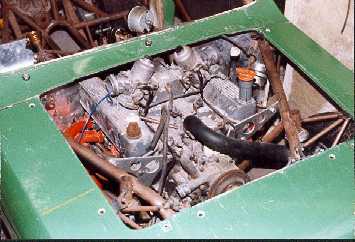

The front is also held
on with Dzus fasteners. Again many mounting points were used to spread the
load.
-------------------------------------------------------------
