Johns Twin Cam Van (page 1)
|
||||||||||||
There are 10 images on this page. |
||||||||||||

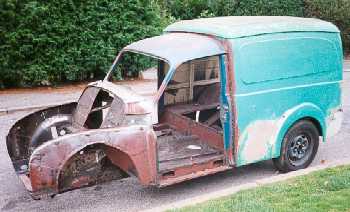

The van as purchased.
The van back used to belong on John Hazletts van which we converted into Nigels
convertible. I paid £300 for the van and sold parts off for £150. |

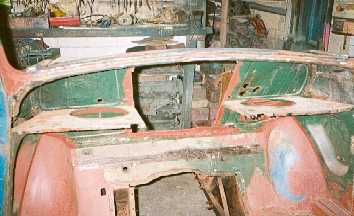

The lad who had the van
was going to put in a smooth dash like Robins. I cut out the mess and this
is what is left. |
|||||||||||
|
||||||||||||

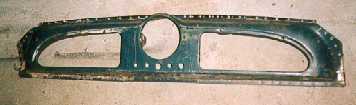

I cut an original Minor
dash out of a bulkhead which we had in stock. |

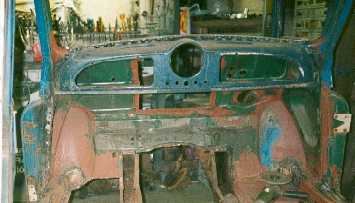

The new dash was welded
in by plug welding and spotting. |
|||||||||||
|
||||||||||||

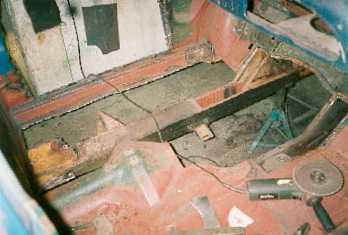

The floor was a patch
work of metal so I cut it out. Cutting was done with a chisel and angle grinder. |

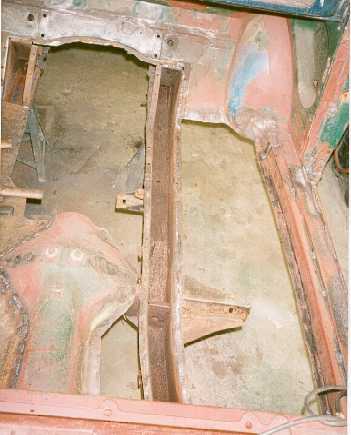

The top was also removed
from the top of the chassis rail and the rails cleaned out. (rust, dirt, sand.) |
|||||||||||

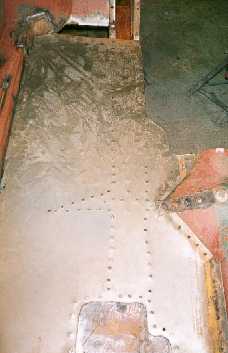

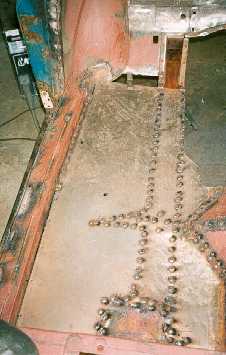

A new floor was cut from
18 swg steel. The holes are for plug welding through to the chassis rail. |
This floor will actually
be stronger than an original Minor commercial because it is all welded together.
A normal floor only sits on top of the chassis. |
|||||||||||
|
||||||||||||

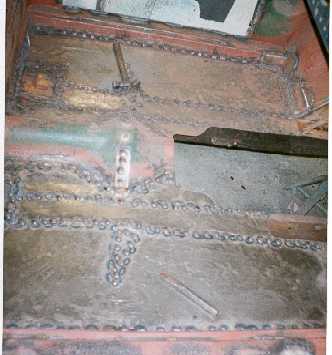

The finished floor. Runs
of weld are also put underneath along the chassis rails. |

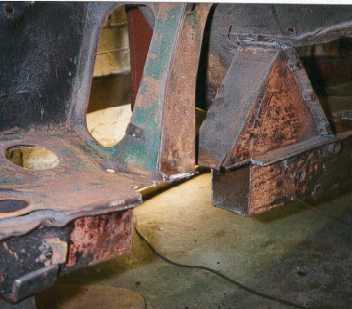

Over the years I have
learn`t about the weak spots on Minors. One such area is the eye bolt mountings
for the front lower suspension arm. So I am going to make mine strong. |
|||||||||||
