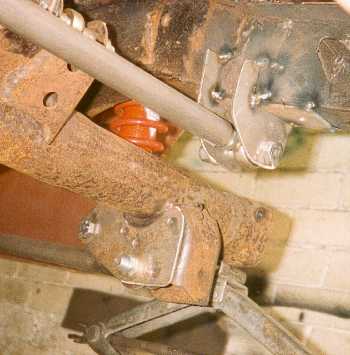

The panhard rod mount
on the chassis and the coilover mount on the axle.
------------------------------------------------------------

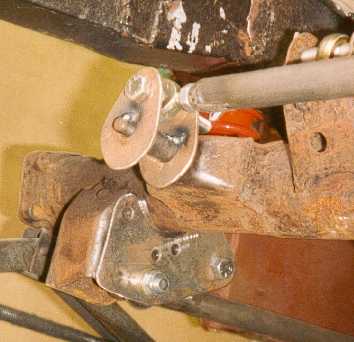

The panhard rod mount
on the axle. This uses the original panhard rod mount.
-------------------------------------------------------------

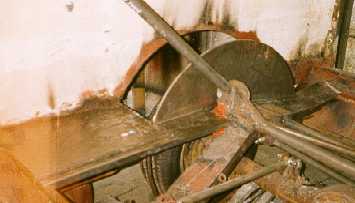

A new floor was made
and inner arches were constructed. First a frame is made from box section
then it is skinned.
------------------------------------------------------------

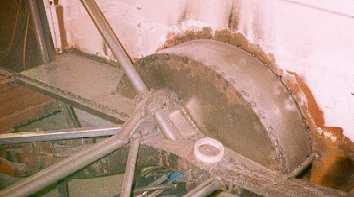

The finished arch and
floor. Down the middle removable boards will be fitted.
-------------------------------------------------------------

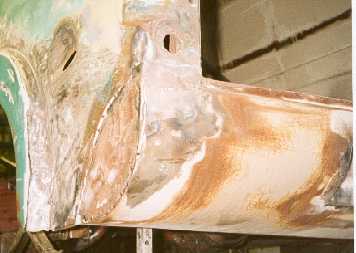

A rolled rear pan had
been put on by the previous owner but it was messy and would have been poor
for aerodynamics.
------------------------------------------------------------

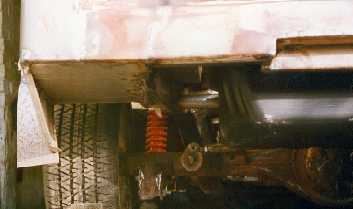

The mess was cut out
and the edges trued up. Any air passing under the vehicle will now be able
to escape.
-------------------------------------------------------------

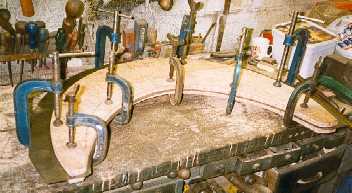

New outer wheel arches
were also required. These were made by forming around wooden jigs.
------------------------------------------------------------

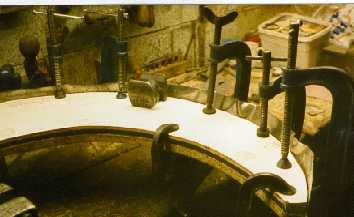

Shrinking metal is a
slow and hard process, but with plenty of hammering it is possible.
-------------------------------------------------------------

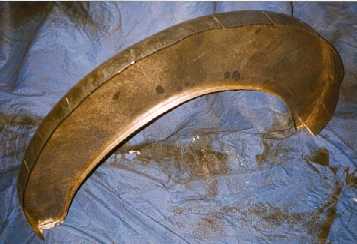

The finished arch ready
for fitting.
-------------------------------------------------------------

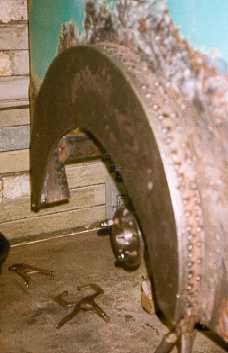

The arch welded in. The
acres are wider than standard.
------------------------------------------------------------
