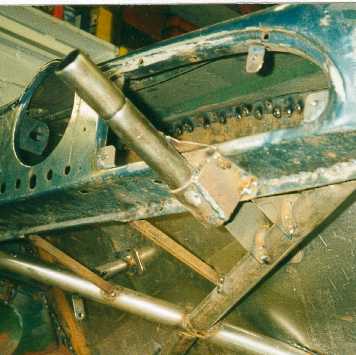

The Minor steering column
points to the centre of the car and the wheel is too flat. I wanted a more
vertical wheel coming out of the dash straight at me. Also with my seat further
back I could move the wheel closer to me. This is the Minor column housing
remounted.
-------------------------------------------------------------

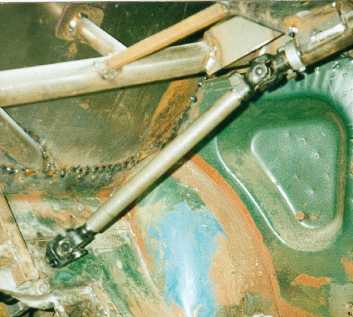

The column is made from
CDS with a uj that goes onto the Minor rack. The uj took some finding. I am
very careful welding steering columns and prefer pinning and brazing.
------------------------------------------------------------

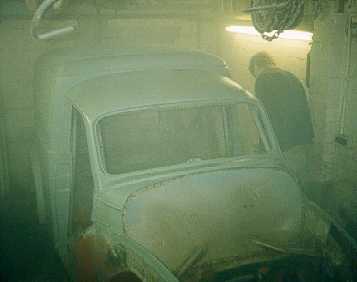

Robin spraying primer.
------------------------------------------------------------

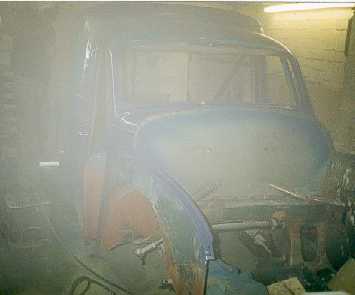

Robin spraying colour.
-----------------------------------------------------------

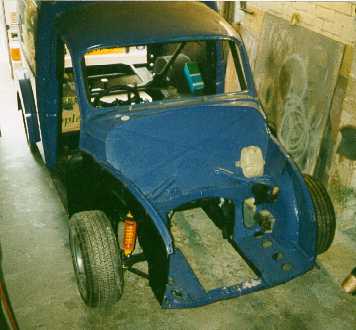

Now the paint is on the
build up can start.
-------------------------------------------------------------

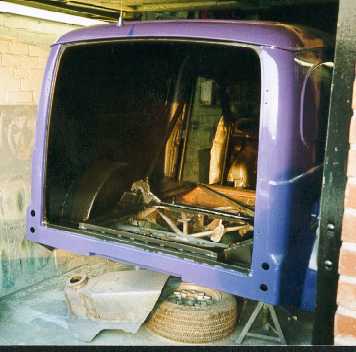

The interior is sprayed
matt black.
-------------------------------------------------------------

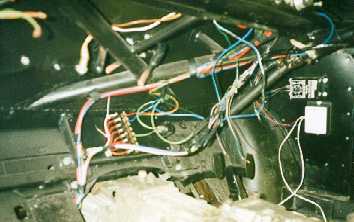

I made a new wiring loom
for the van. The hardest part was deciding where to run the wires not which
wire to connect to which connection.
--------------------------------------------------------------

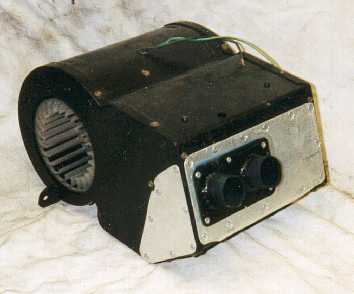

A Mini heater is modified
to only blow onto the screen. This should ensure that that the screen does
not mist up.
-------------------------------------------------------------

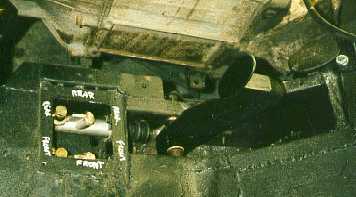

Twin master cylinders
with balance bar were fitted under the floor. The pedal is a modified Ford
Escort item.
------------------------------------------------------------

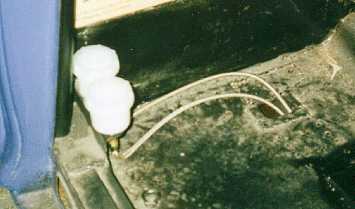

The reservoirs for the
master cylinders are mounted as low and far back as possible.
------------------------------------------------------------
